Customized CZ Transparent Sapphire Optical Window For Optical Equipment

Customized CZ Transparent Sapphire Optical Window For Optical Equipment

Product Details

Place of Origin: Chongqing, China

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: 30-150USD

Packaging Details: Carton

Delivery Time: 5-8 weeks

Payment Terms: T/T

Supply Ability: 1000 piece per month

Get Best Price
Contact Now
Specifications
Highlight:

CZ Sapphire Optical Window

,

Customized Sapphire Optical Window

,

Customized transparent sapphire

Material:
Sapphire
Size:
Customized Size
Color:
Optional
Growing Method:
CZ Sapphire
Packing:
Carton
Deliery Port:
Chongqing
Use:
Optical Equipment
Drawing:
Cad
Material:
Sapphire
Size:
Customized Size
Color:
Optional
Growing Method:
CZ Sapphire
Packing:
Carton
Deliery Port:
Chongqing
Use:
Optical Equipment
Drawing:
Cad
Description
Customized CZ Transparent Sapphire Optical Window For Optical Equipment

Customized Flat Sapphire Watch Glass With Transparent Color



The window is a flat plate with two parallel or wedge-shaped surfaces, and is usually used as a protective window for electronic sensors or external environment detectors. The window does not change the magnification of the system. Substrate materials include various sapphire, optical glass, K9, ultraviolet fused silica, infrared fused silica, and calcium fluoride (CaF2), magnesium fluoride (MgF2), zinc selenide (ZnSe), germanium (Ge), silicon (Si) And other crystal materials, and provide various optical coatings such as anti-reflection coatings, high-reflection coatings, spectroscopic coatings, and metal coatings. Broadband antireflection coatings can be used in the ultraviolet, visible, near-infrared and mid-infrared bands.



The sapphire window is a flat polished product based on single crystal sapphire processing. The sapphire protective window is a special window that uses the pressure, abrasion, and high temperature characteristics of sapphire to protect the observer, the inside of the instrument and the inside of the container.



Single crystal sapphire windows are very suitable for demanding applications (such as laser systems) because of their extremely high surface hardness, high thermal conductivity, high dielectric constant, and resistance to chemical acids and alkalis. Since the hardness of sapphire is second only to diamond, and its structural strength is very high, the thickness of the sapphire window made by enhanced light transmittance is thinner than that of the general high-dielectric window. In terms of chemistry, sapphire is a single crystal of aluminum oxide (Al2O3), which is very suitable for transmission between 0.2 and 5.5 μm. In general optical applications, the basic needs of customers can be met without coating. Our products can also be coated, silk-screened or special heat treated according to customer needs to meet the special needs of customers.



Has ultra-high surface hardness and chemical resistance
Can transmit wavelengths between UV and mid-infrared
Thinner and stronger than standard glass windows


Product shapes are divided into: round, rectangular, stepped and various machinable shapes.

The product size range is: diameter (maximum diagonal) 10-500mm, thickness 0.3-100mm.

Product finish after polishing: 80/50, 60/40, 40/20, 20/10, 10/5 optional (US military standard).

Surface flatness (surface type): up to 1/10λ.



Property Specifications
Thickness 0.5-200mm
Size Tolerance ±0.01
Edge Finish Ground and beveled
Surface Quality 40-20 scratch-dig
Surface Flatness λ/4@633nm
Parallelism ≤3 arc min(≤0.9mrad)
Clear Aperture >80% of central diameter
Hardness(Knoop) 1370 kg/mm2
Young's modulus 3.4*1011N/m2
Thermal Limit 22W/m/K
Thermal expansion coefficient 8.4*10-6/K

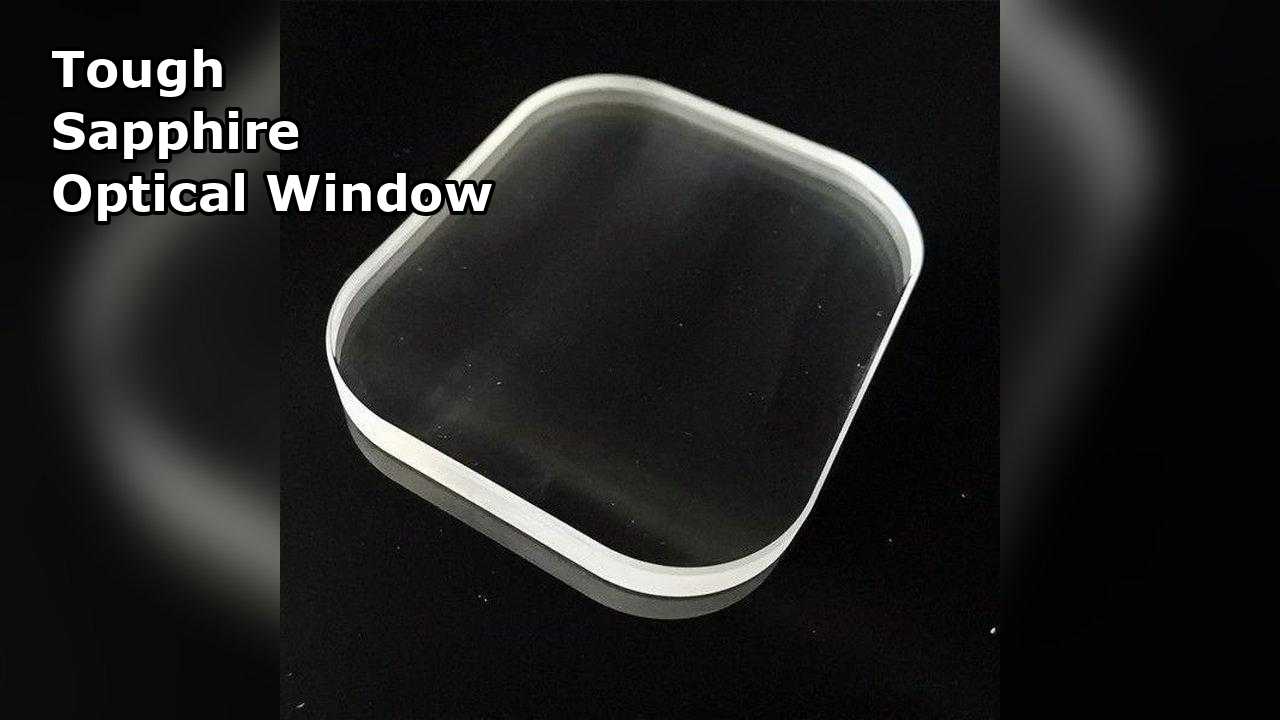

Customized CZ Transparent Sapphire Optical Window For Optical Equipment 0Customized CZ Transparent Sapphire Optical Window For Optical Equipment 1Customized CZ Transparent Sapphire Optical Window For Optical Equipment 2







Why US?



1. We’re the rare source manufacturer of color sapphire boule, and the most professional factory of sapphire processing, especially the special watch case.

2. We have our own sapphire grown equipent with CZ and KY method.

3. Professional customized production according to the drawing provided by clients.

4. Precision work of sapphire processing and polishing.

5. Experienced technicians and skilled workers.



FQA

1. Are you a trading company or factory?

We are a professional factory of sapphire products, also a trading company .



2.Can you do customized products?

Yes, we specialized in customized production or OEM work.

CAD,3D drawing are needed.



3.Could you provide samples?

Yes, we could provide samples with a charge, but if you place the order with a quality above 100pcs, the sample charge will be refunded.



4.What’s the delivery time?

It depends on the type of products and the quality.

For watch case, the regular time is around 5-8 weeks for 200pcs according to the difficulty of the processing.



5.How about the payment?

T/T payment is prefered.



6.How about the delivery?

Mostly by air, like DHL, Fedex.
